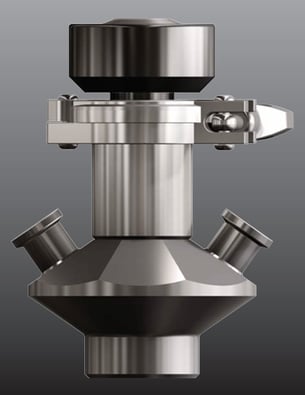

Sampling valve KEOFIT

Many tank-type devices have sampling valves installed. They are used to take samples without stopping the production process and without intervening inside the tank.

These valves are used mainly in the food, biotechnology, cosmetics, pharmaceutical industries and wherever a high level of cleaning is needed.

We identify parts on the basis of valve type, photos or technical documentation provided by equipment users.

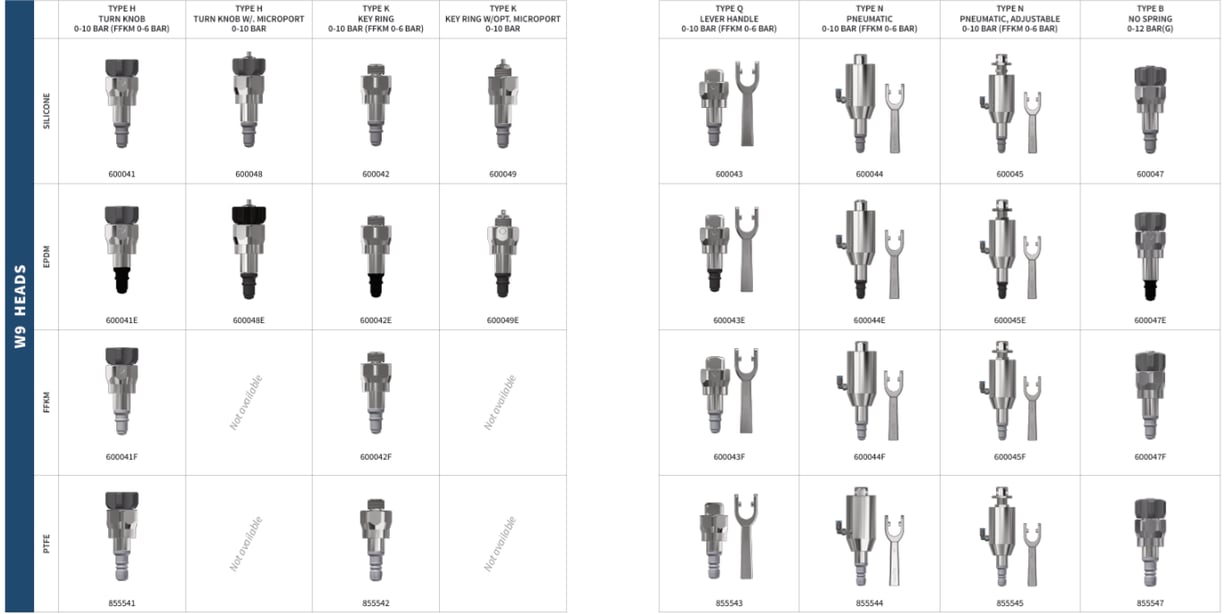

Keofit W9 valve heads:

Diaphragms and accessories for the Keofit W9 sampling valve:

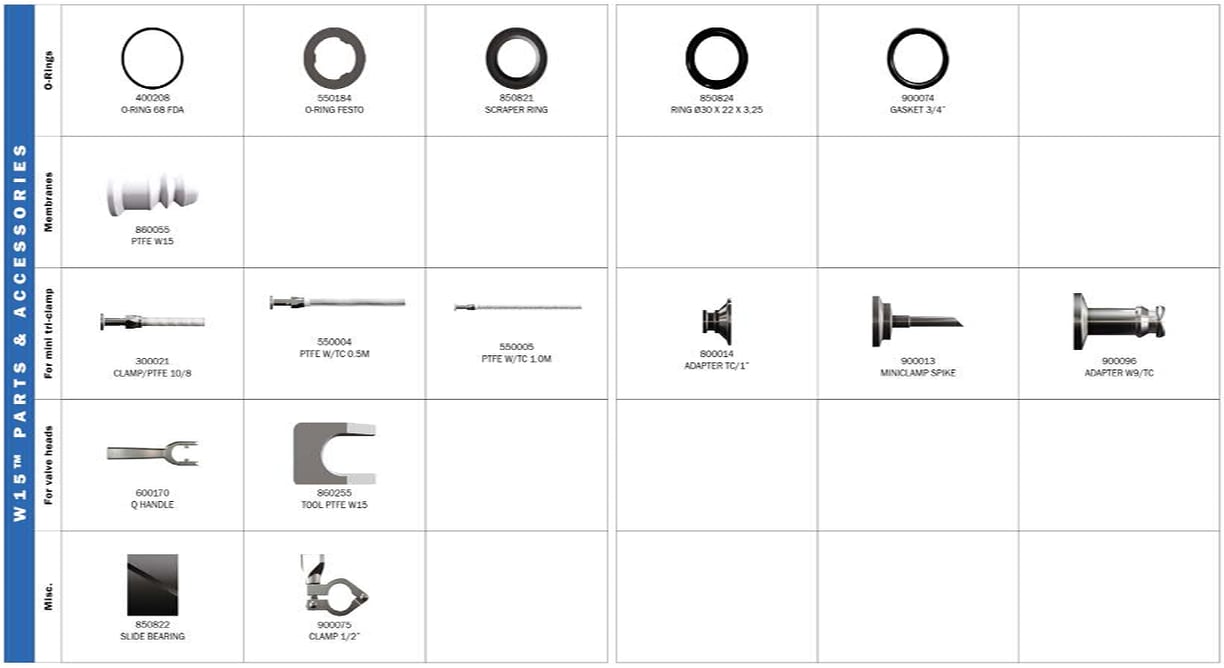

Spare parts and accessories for the Keofit W15 sampling valve:

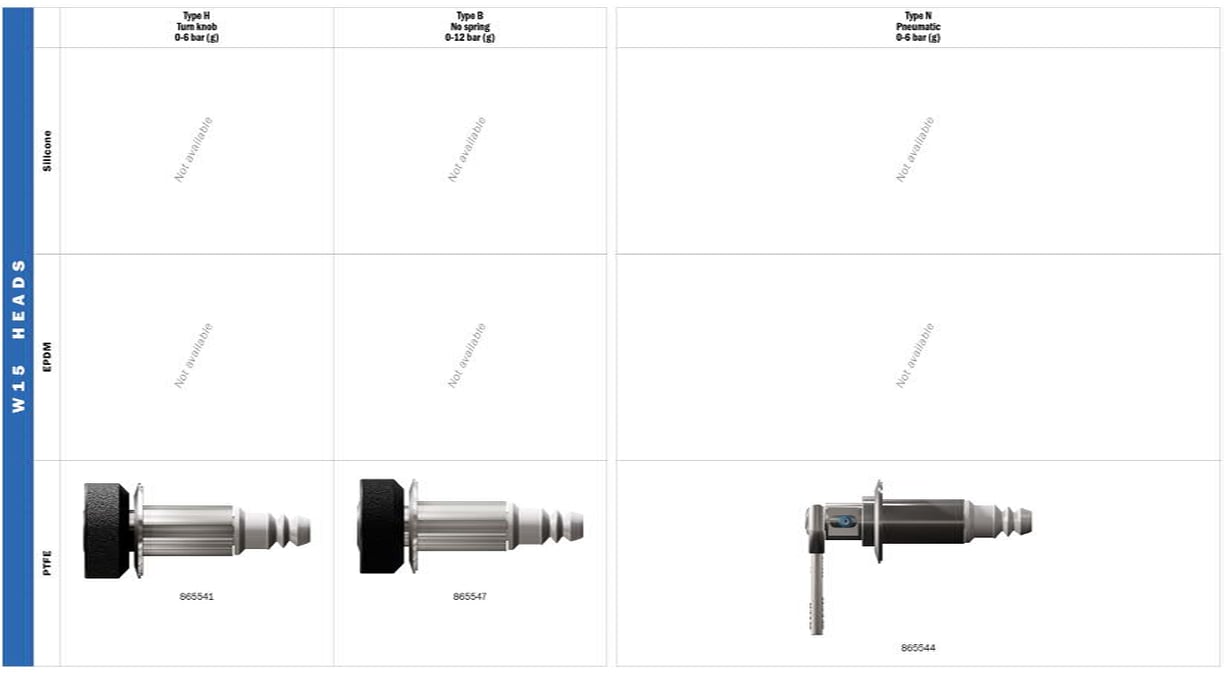

Keofit W15 valve heads:

Diaphragms and accessories for the Keofit W15 sampling valve:

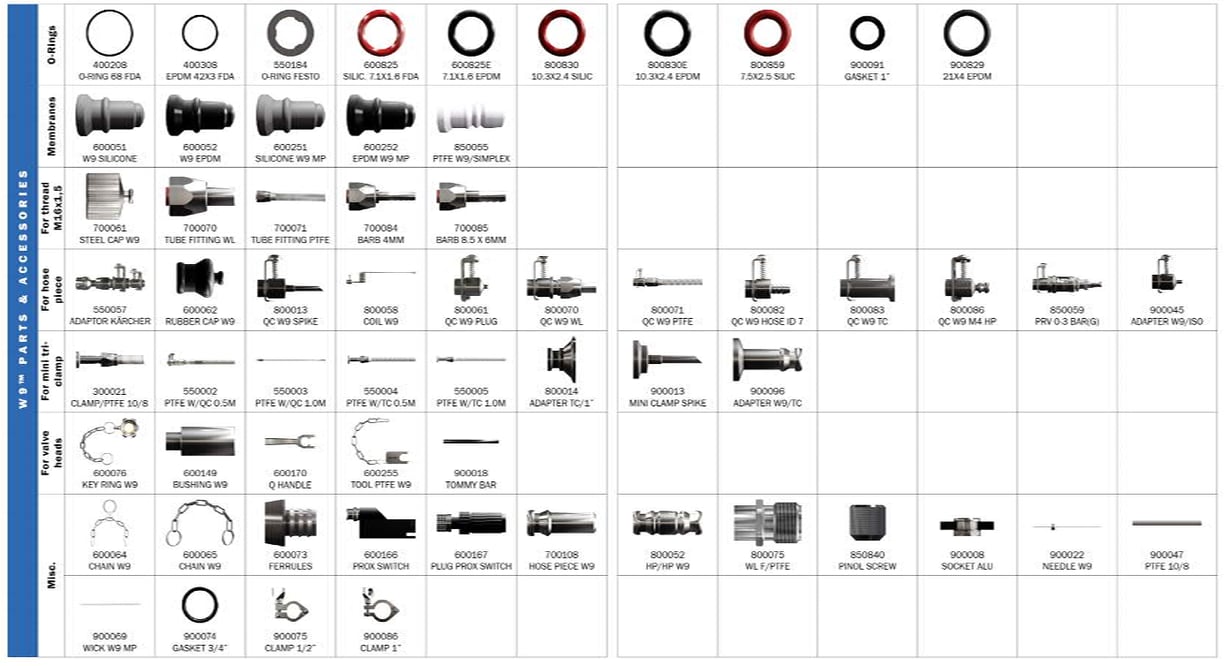

Spare parts and accessories for the Keofit W9 sampling valve:

Operating parameters:

Design Pressure / Design Pressure: -1 to 6 bar

Operating temperature: Silicone membrane: -60 ˚C / +200°C

EPDM membrane: -40 ˚C / +140°C

PTFE membrane: -200 ˚C / +200°C

Certifications: FDA regulations §177.2600 / USP Biological Tests for Plastics, EU1935/2004
